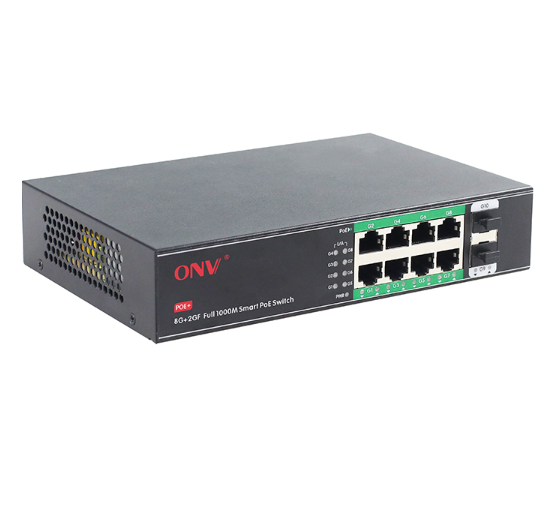

ONV-H3108PF 8-Port Gigabit Unmanaged PoE Switch 2 SFP Uplink

Upgrade your network infrastructure with the ONV-H3108PF, a high-capacity unmanaged PoE switch designed for security, surveillance, wireless access, and other applications requiring both data and power over Ethernet. With 8 Gigabit RJ-45 PoE ports and 2 Gigabit SFP fiber uplink ports, it delivers flexible and reliable connectivity for demanding environments. Port 1-8 support both IEEE 802.3af/at, providing up to 30W per port, powered by a built-in 120W power supply. Solid metal housing, full Gigabit throughput, and plug-and-play operation make this an ideal switch for hotels, campuses, factories, or corporate deployments. Key Specifications Specification Detail RJ-45 Ports 8 × 10/100/1000Base-T PoE ports (Data & Power) — Ports 1-8 support IEEE 802.3af/at; up to 30W per port. SFP Uplinks 2 × 1000Base-X SFP fiber uplink ports (multi-mode / single-mode; modules sold separately) for extending distance over fiber. Total PoE Budget / Power Supply Built-in power supply, 120W total for PoE operation (AC 100-240V, 50-60 Hz) Switching Capacity & Performance Non-blocking wire-speed forwarding; 20 Gbps switching capacity; approx. 14.88 Mpps forwarding rate at 64-byte packets. Transmission Distance RJ-45 ports: up to 100 m over Cat5e/Cat6; SFP modules support varied fiber distances depending on module type (multi-mode, single-mode) Physical / Environmental Metal chassis; dimensions ~ 195 × 130 × 40 mm; operating temp -20 °C to 55 °C; humidity 5-90% non-condensing. Certifications & Safety CCC, CE, FCC, RoHS; LED indicators for Power, Link, PoE; support for PoE priority and automatic detection to avoid damage to non-PoE devices.
