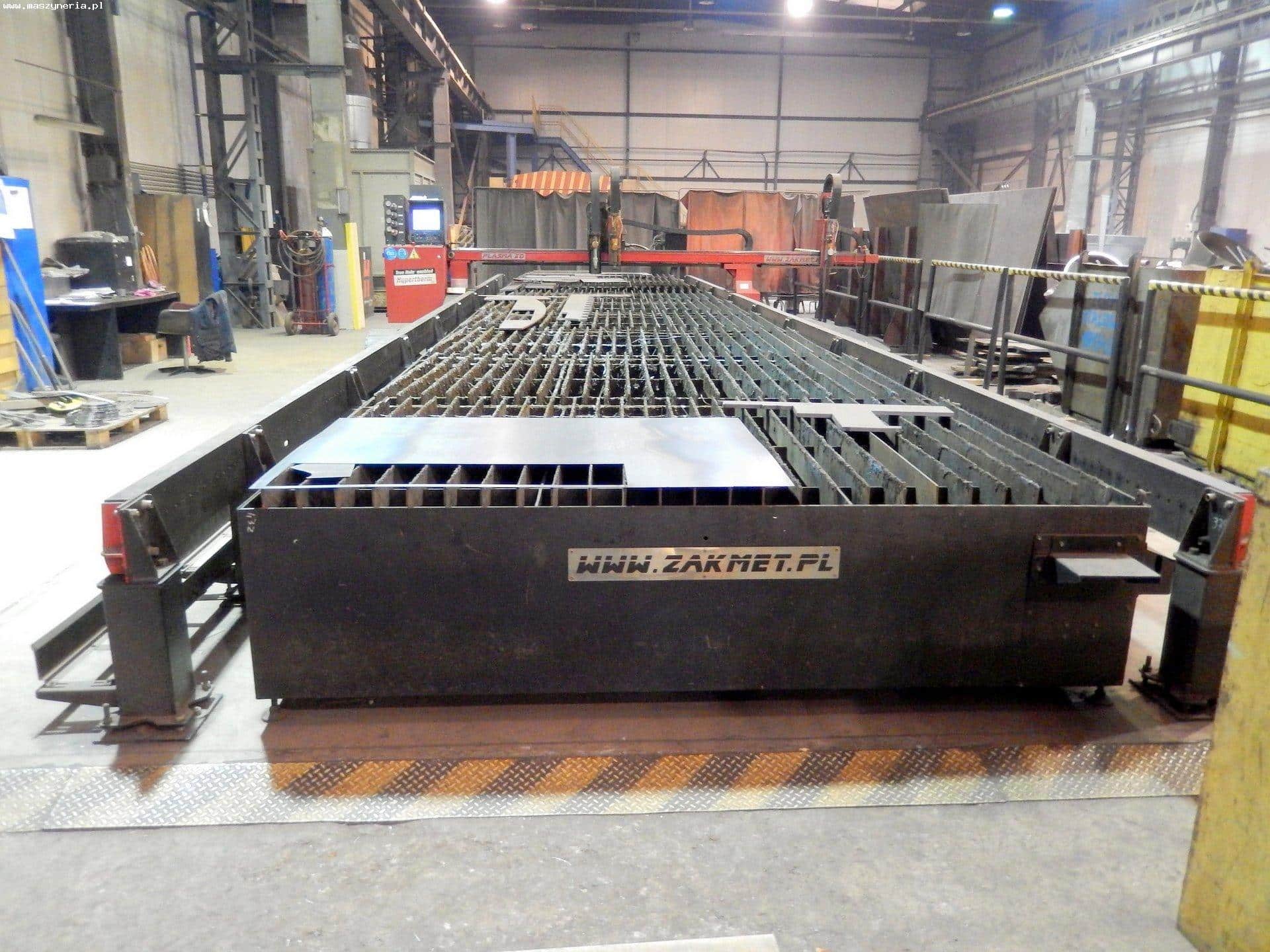

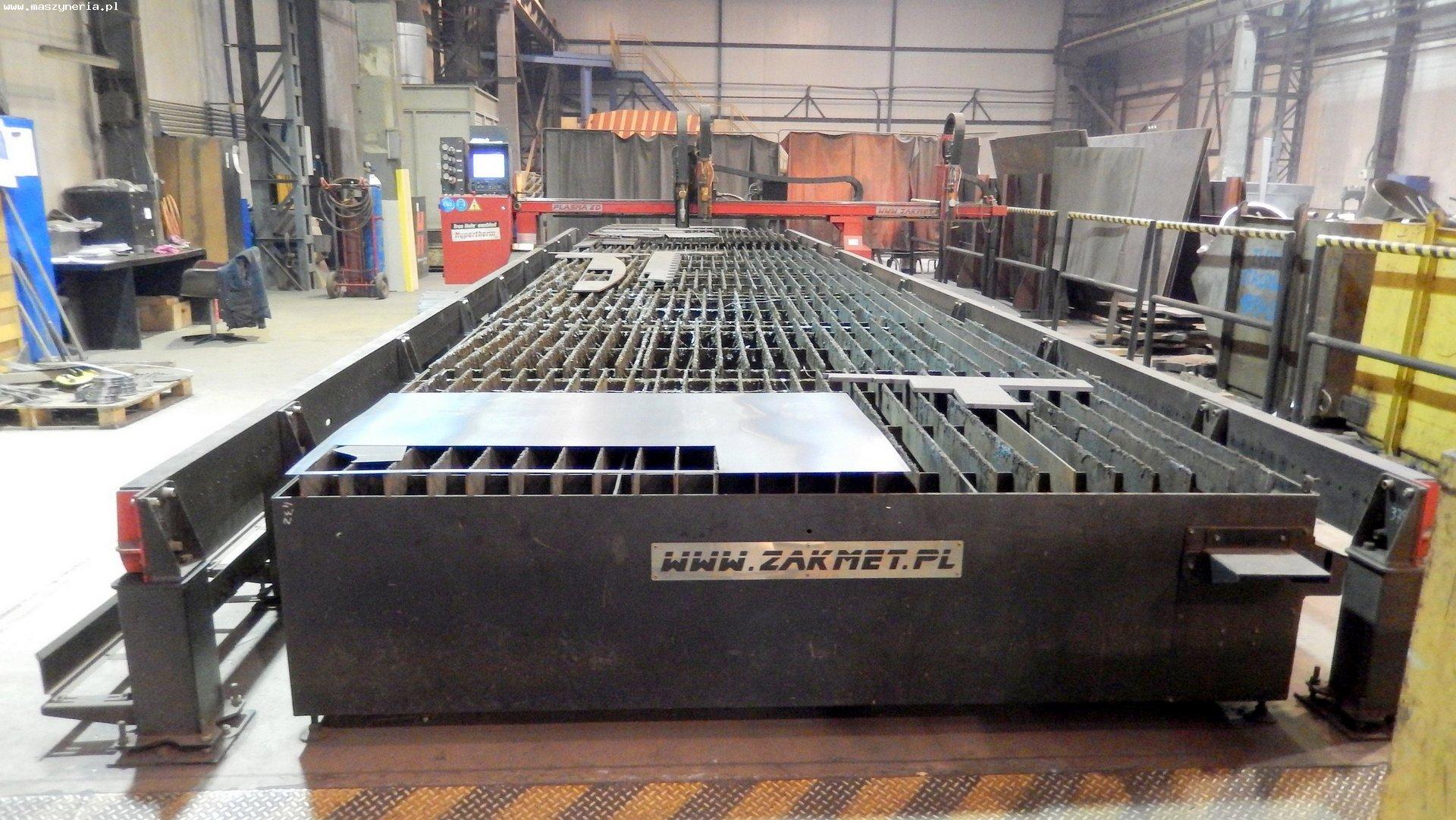

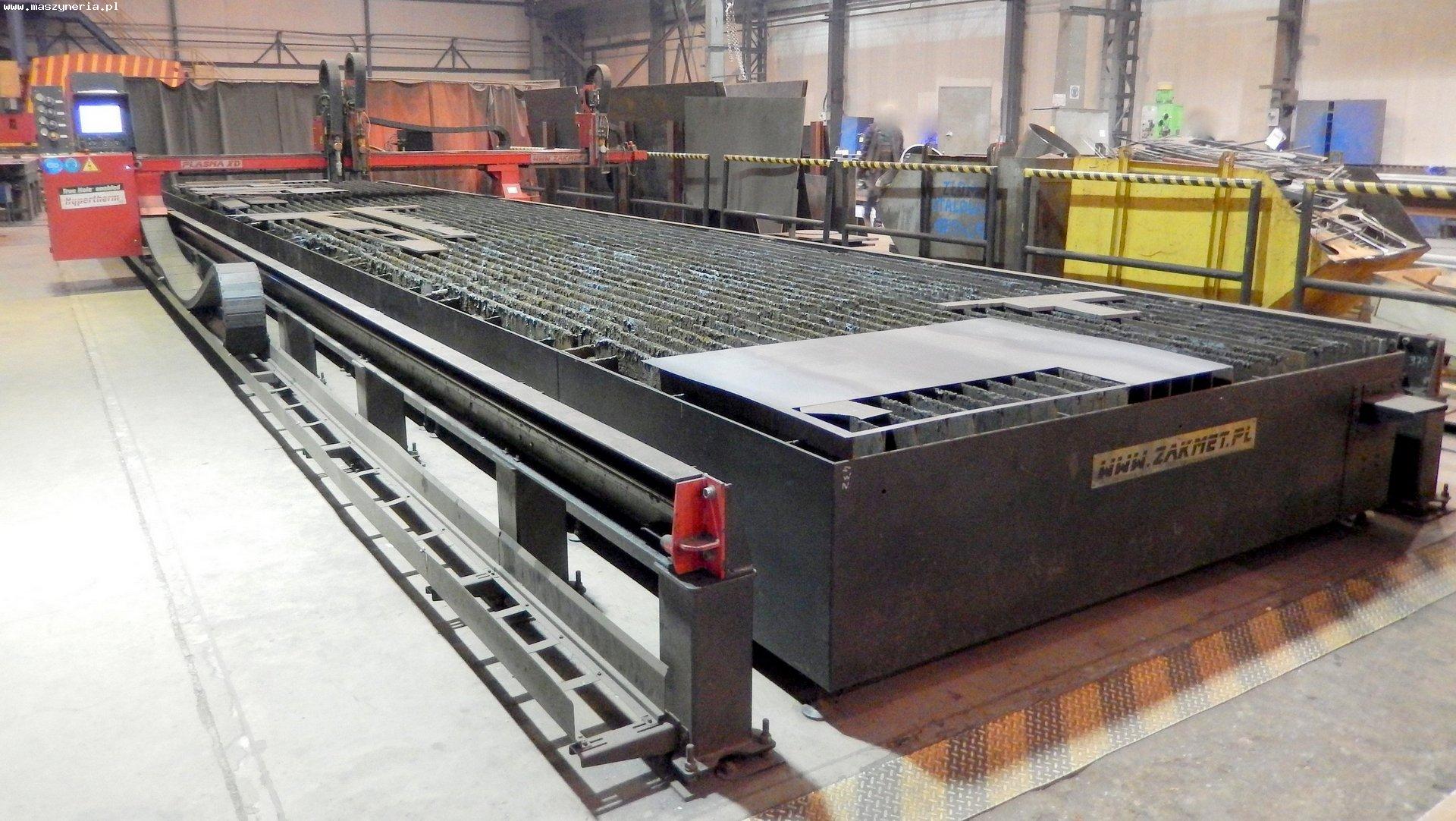

ZAKMET FIRECUT 1325 13000 X 2500 plasma-gas cutting machine

ZAKMET FIRECUT 1325 13000 X 2500 plasma-gas cutting machine was built in 2011 by the Polish company ZAKMET s.c. The machine has a ventilated section table with dimensions (L x W) 1550 x 2500 mm, which can withstand a load of 15 kN / m2. Memolub 3.0 central lubrication system. provides lubrication of the running elements of the burner. The plasma-gas cutting machine is equipped with digital control Hypertherm EDGE’Pro. The cutting machine is fully operational and ready for further work. Technical specification of the ZAKMET FIRECUT 1325 13000 X 2500 plasma-gas cutting machine – central lubrication system: Memolub 3.0 – maximum table load: 15 kN / m2 – minimum temperature of the working environment: 5 degrees C – maximum temperature of the working environment: 60 degrees C – fuel gas: propane, methane – gas burner cutting range: up to 300 mm – diameter of the gas burner mounting: 45 mm – gas burner handle length: 250 mm – dimensions of one segment (length x width x height): 2600 x 1550 x 575 mm – number of sections per segment: 3 – section flap closing system: pneumatic, controlled from the EdgePro controller – pneumatic connection: 6 bar -10% – air consumption: 460 Nl / h – the system includes a drainage and lubrication system – power supply of the ZAKMET FIRECUT 1325 machine: 24 VDC – supply voltage: 3x400V AC 50 Hz – working area dimensions (L x W x H): 13,000 x 2,500 mm (additionally 700 mm) x 200 mm – machine dimensions (L x W x H): 14500 x 5500 x 2000 mm Equipment for the plasma burner ZAKMET FIRECUT 1325 13000×2500 – CNC control: Hypertherm EdgePro – gas burner: type MS 3452 250-PM (x2) – filter ventilation: KAD325-4X4 660 CCD – plasma aggregate: HPR 260 XD – ventilated section table: 1550 x 2600 mm – 9 segments
