ECKERT JANTAR plasma cutting machine

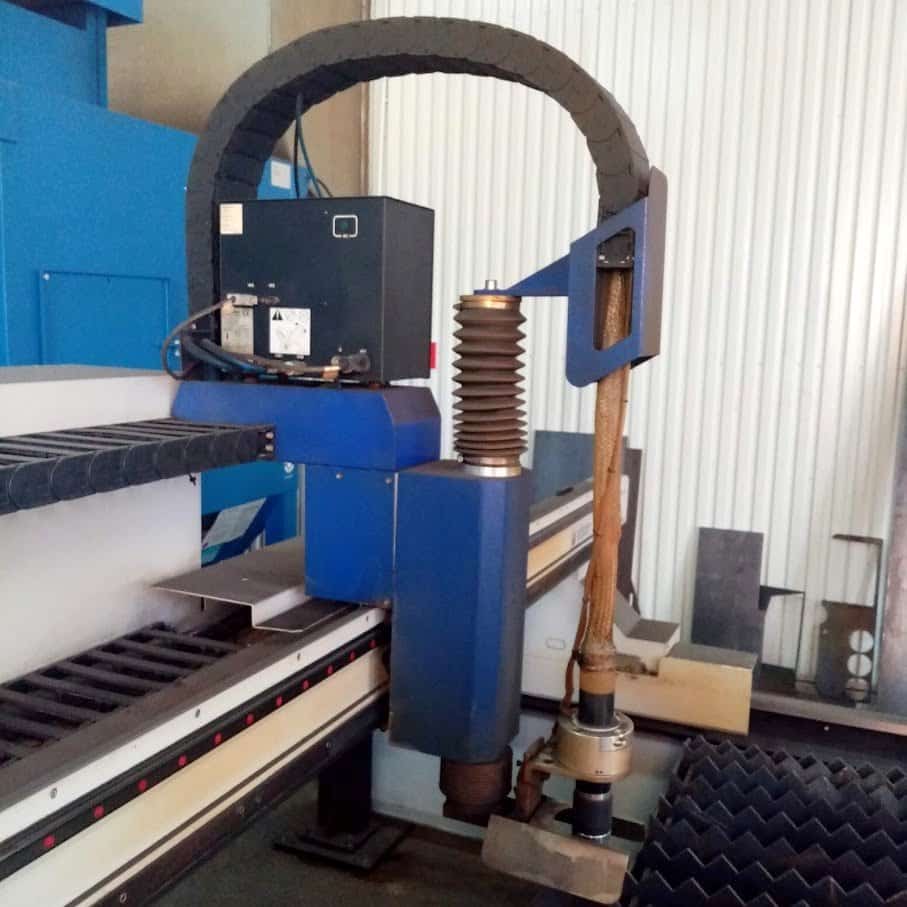

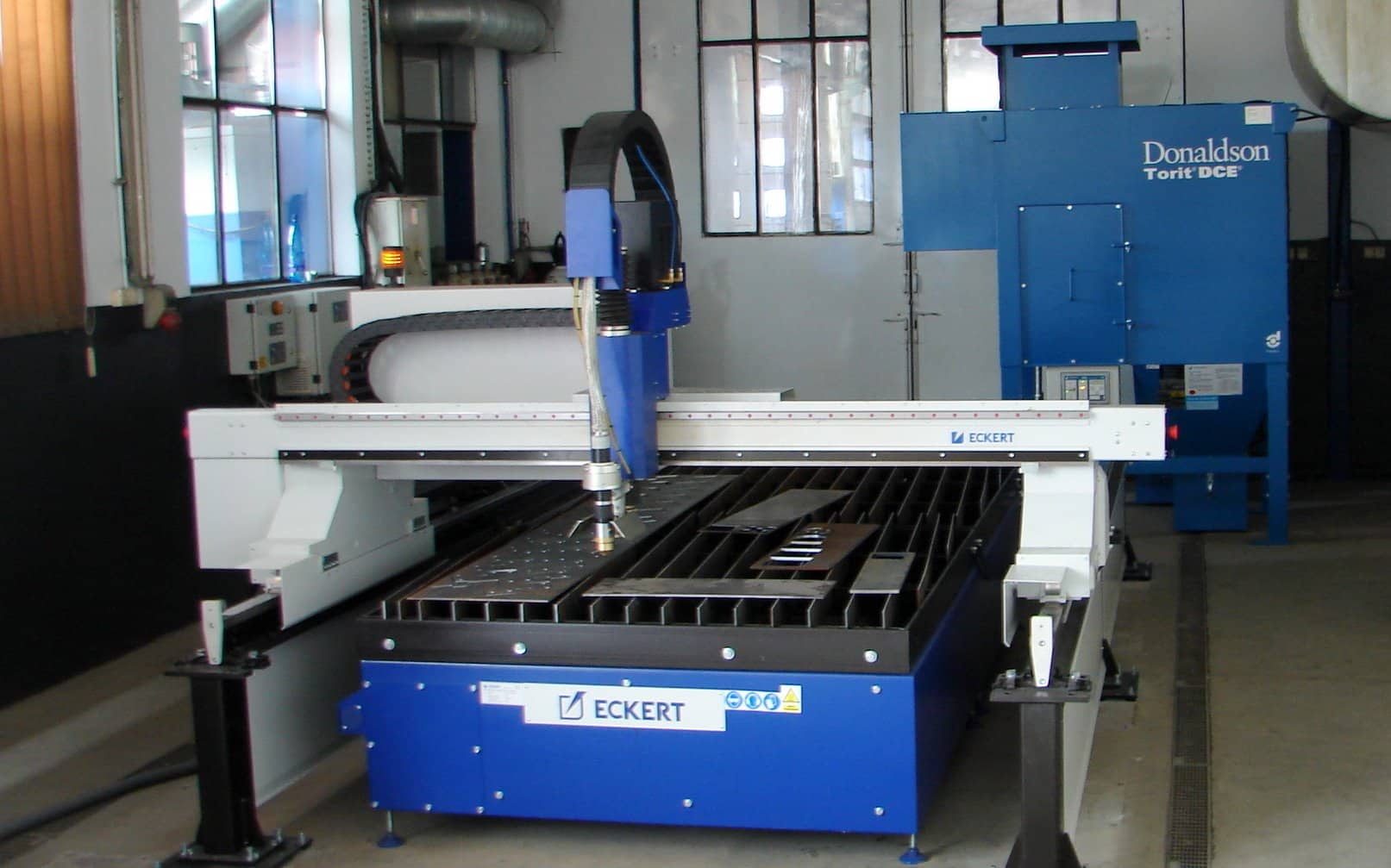

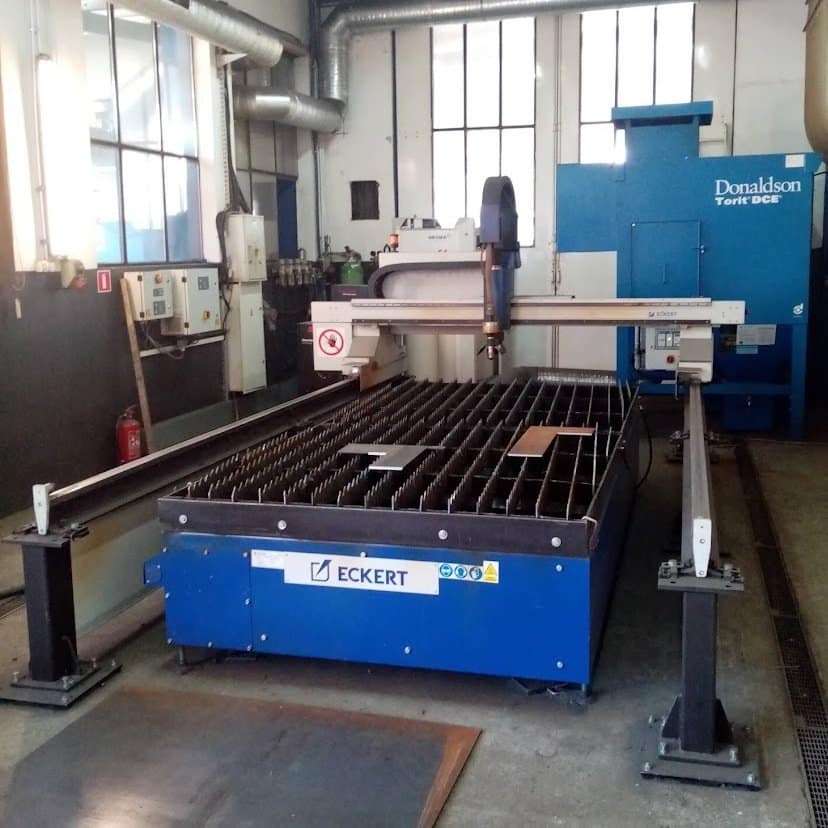

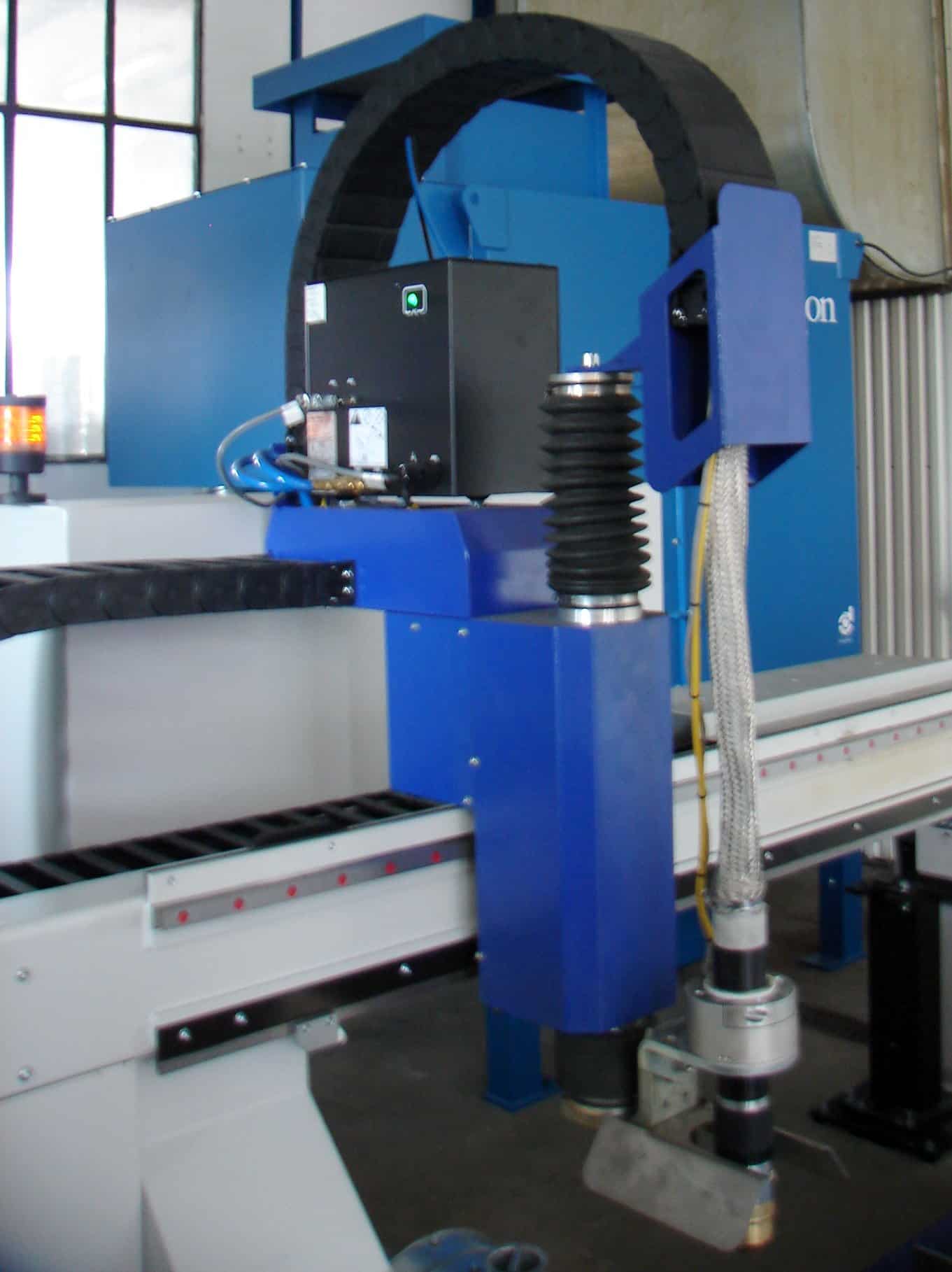

ECKERT JANTAR plasma cutting machine was manufactured in 2017 in Poland. Characterised by a robust and stable construction, the machine is designed for cutting shapes in workpieces made of mild steel, stainless steel or aluminium. For precise machining of sheets having a maximum thickness of 38 mm (mild steel) or 25 mm (stainless steel and aluminium), it uses a plasma torch equipped with an HD3000 support with distance adjustment by measuring the plasma arc voltage. The process of cutting workpieces is carried out on a working area measuring 2000 mm in length and 3000 mm in width, equipped with an extraction table eliminating the impurities generated during processing. The plasma cutting machine is offered with a wide range of equipment, including: modern CNC controller ECS 872 for full control over the operation of the machine, and a HYPERTHERM HPR130XD plasma source. Technical data of the ECKERT JANTAR plasma cutting machine cutting length: 2000 mm minimum cutting width: 1500 mm maximum cutting width: 3000 mm maximum workpiece thickness (mild steel): 38 mm maximum workpiece thickness (stainless steel): 25 mm maximum workpiece thickness (aluminium): 25 mm minimum travel speed: 10 mm/min maximum travel speed: 10000 mm/min travel length: 4000 mm length of travel extension: 2000 mm accuracy of sheet distance adjustment: 0.1 mm working stroke of support: 125 mm working table height of JANTAR machine: 760 mm Equipment of the plasma cutting machine CNC control: ECS 872 plasma source: HYPERTHERM HPR130XD filtration unit: DONALDSON DFPRO 4 extraction table AC servomotor plasma torch plasma torch support HD3000 with distance adjustment by measuring the plasma arc voltage
