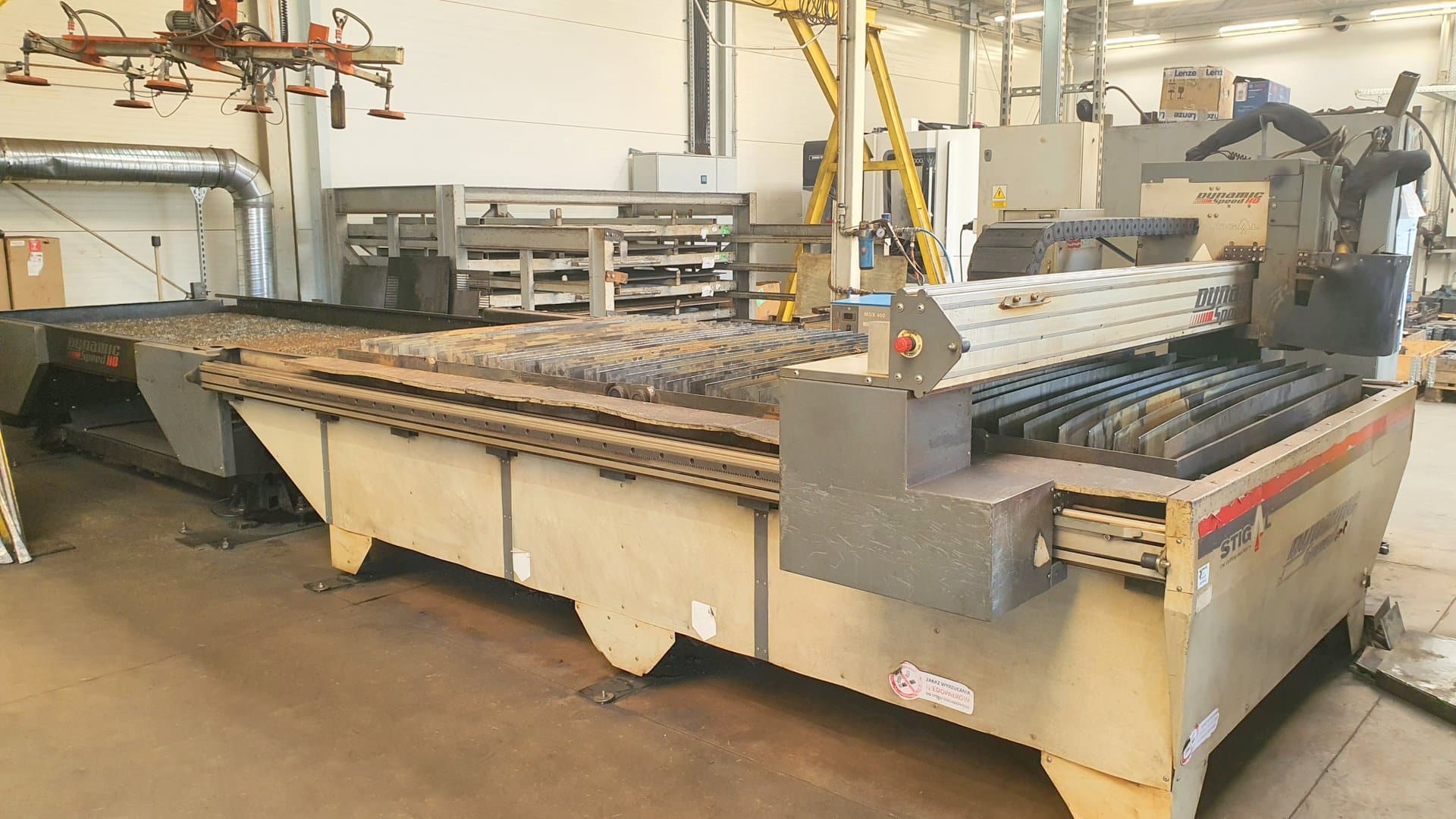

ZAKMET HYPERZAKMET 6000X2500 plasma cutting machine

ZAKMET HYPERZAKMET 6000X2500 plasma cutting machine was built in 2008 in Poland. The machine is used to cut pre-programmed shapes in details having a maximum thickness of 38 mm (carbon steel) or 20 mm (aluminium and stainless steel). A powerful HYPERTHERM HyPerformance HPR 130 laser source with a power of 130 A is used for the cutting process, allowing extremely precise and accurate machining to be achieved. The plasma cutting machine has a solidly built work table with a length of 6000 mm and a width of 2500 mm, which can be extended by means of an additional control panel. The plasma cutting machine is also equipped with FASTCAM CAD/CAM software for simple and effective programming of the cut shapes, and a modern HYPERTHERM EDGE CNC controller, which allows for full control of the machine. Characteristics of the ZAKMET HYPERZAKMET 6000X2500 plasma cutting machine working area (length x width): 6000 x 2500 mm maximum workpiece thickness (carbon steel): 38 mm maximum workpiece thickness (stainless steel): 20 mm maximum workpiece thickness (aluminium): 20 mm cutting speed: 250-4950 mm/min traverse speed: 50-8000 mm/min work table height: 600 mm table type: extendable (control via additional panel) laser source output current: 130 A power supply: 230 V; 50 Hz Equipment of the plasma cutting machine CNC control: HYPERTHERM EDGE laser source: HYPERTHERM HyPerformance HPR 130 CAD/CAM software: FASTCAM (with dongle) refrigeration dryer exhaust fan gas console ignition console control panel for work table extension
