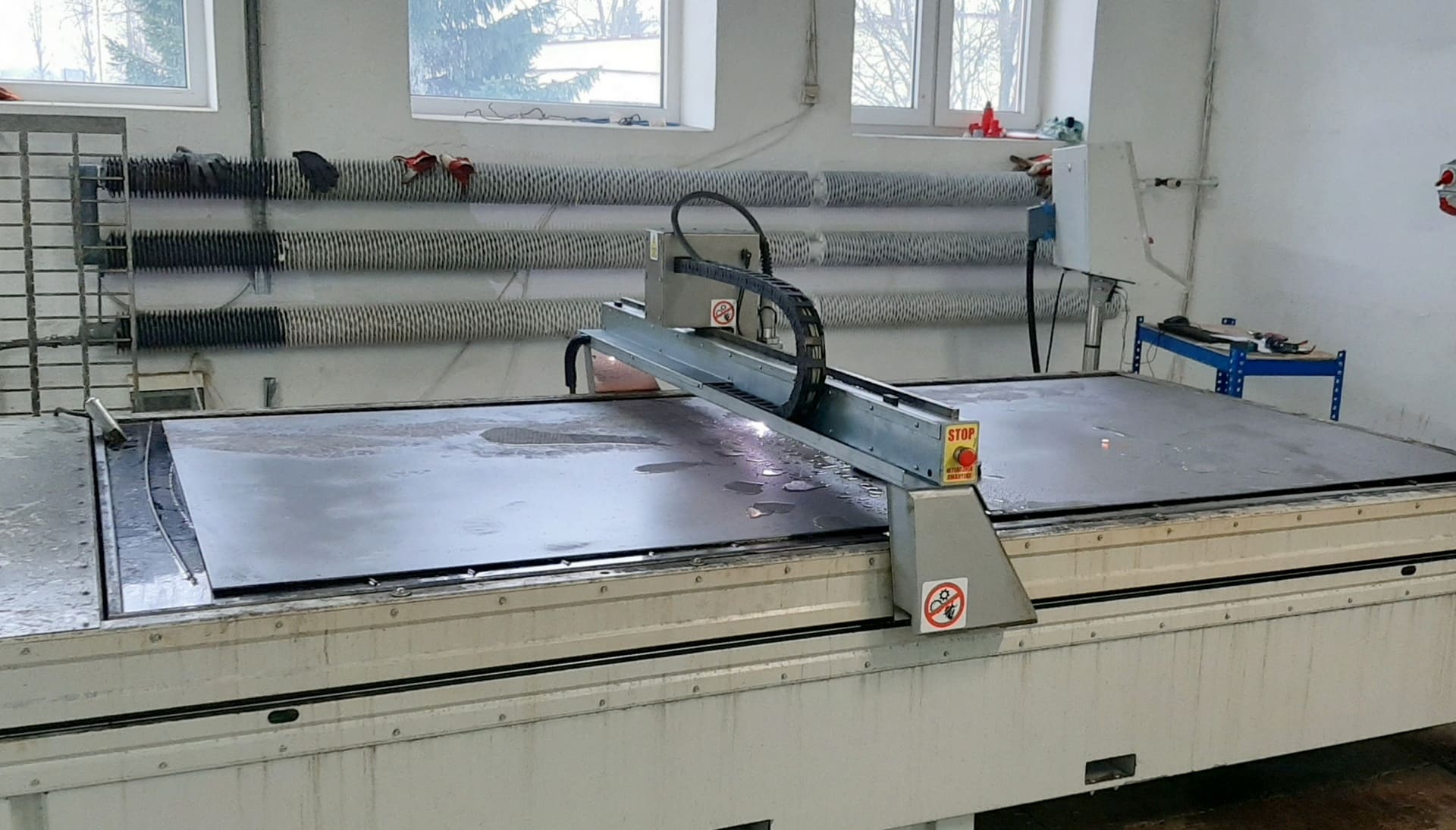

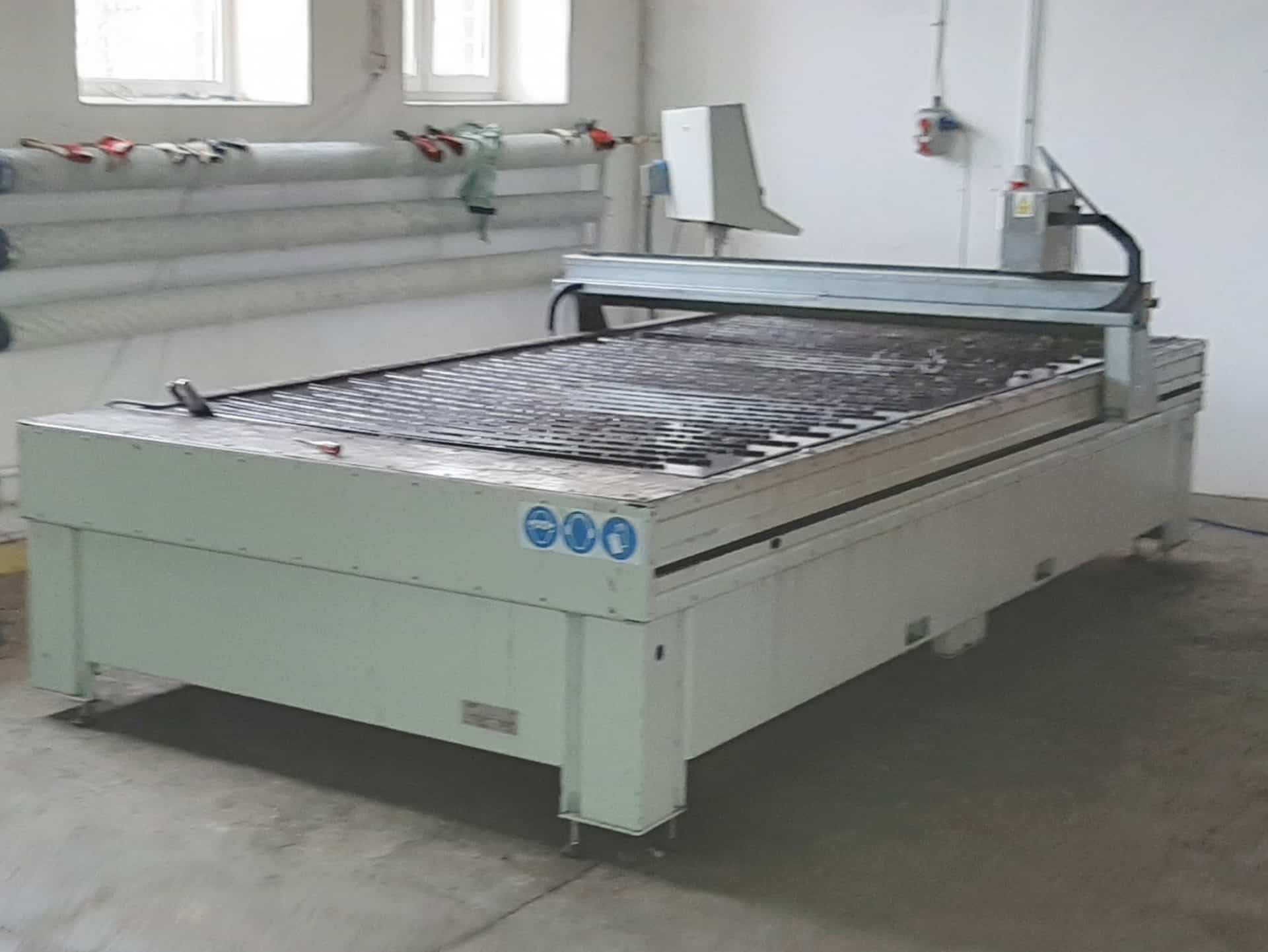

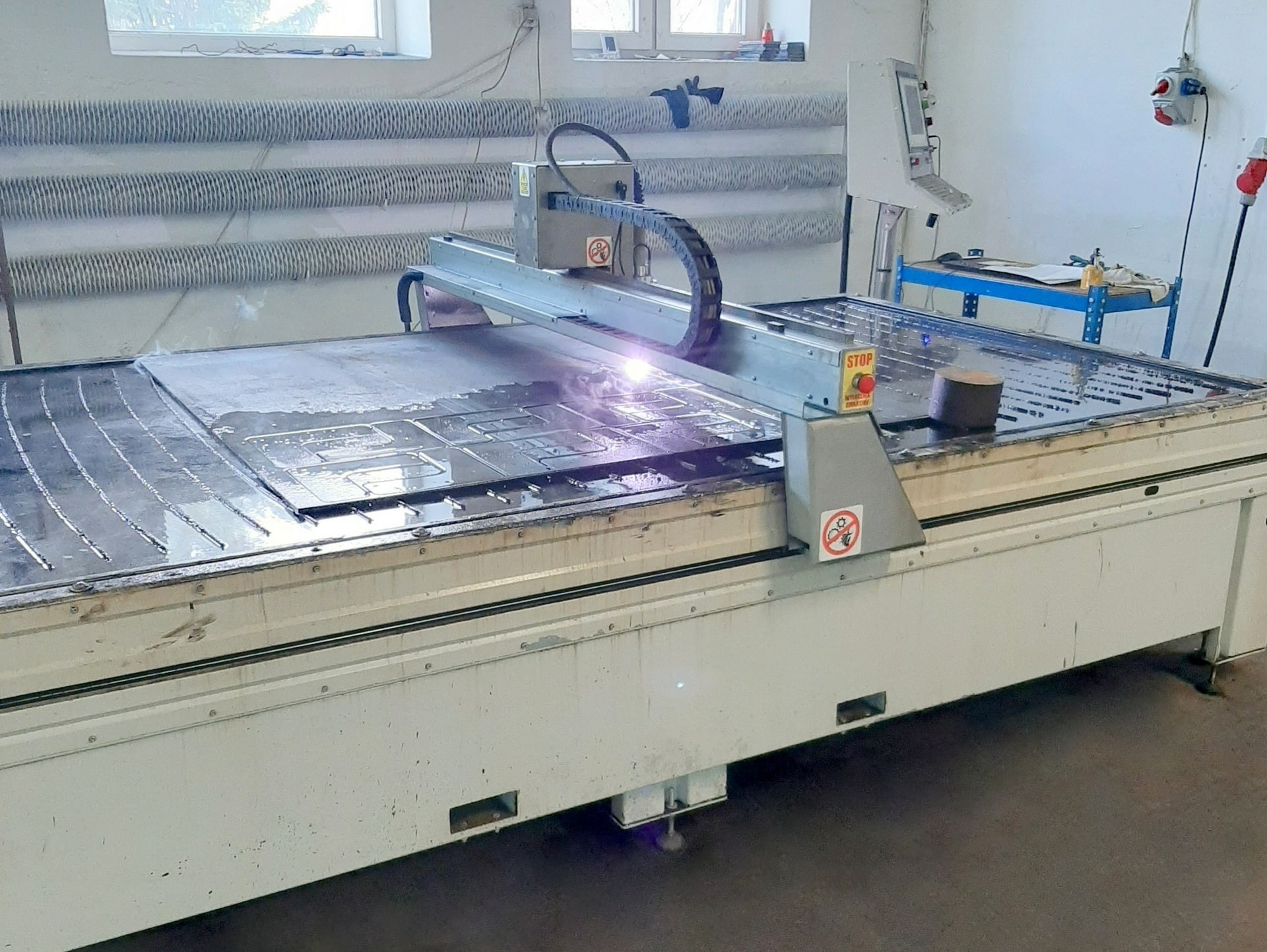

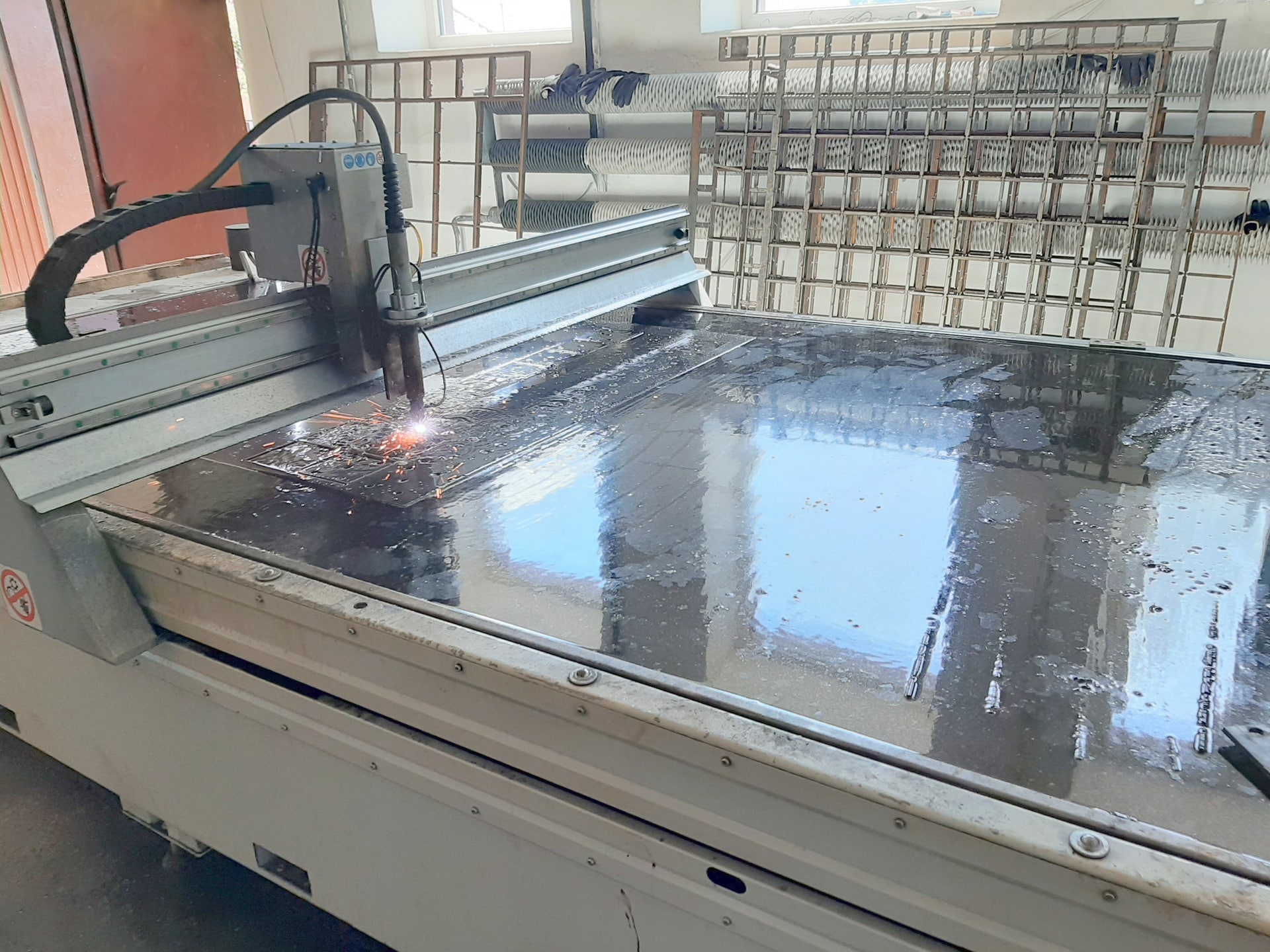

KT7 CNC KSP 150-300 SPEED plasma cutting machine

KT7 CNC KSP 150-300 SPEED plasma cutting machine was manufactured in 2019 in Poland. The machine, designed for precision machining of workpieces with a maximum weight of 4 tonnes, is an excellent choice for small businesses as well as for large industrial plants. Its compact design and all components have been fully galvanised to prevent rust and guarantee trouble-free operation throughout its lifetime. The SPEED KSP 150-300 plasma cutting machine is also equipped with, among others, a WALTER refrigeration dryer and many useful systems that increase precision and production efficiency. The total weight of the machine is 850 kg. Technical specifications of the KT7 CNC KSP 150-300 SPEED plasma cutting machine work table dimensions (L x W): 3000 x 1500 mm maximum sheet metal weight: 4000 kg feed range in Z axis: 110 mm travel speed: 25000 mm/min working speed: up to 10000 mm/min power: 1.5 kW power supply: 230 V; 50 Hz dimensions (L x W x H): 3600 x 2050 x 1350 mm weight of machine: 850 kg Equipment of the KT7 CNC plasma cutting machine CNC controller CAM software refrigeration dryer: WALTER WDF 53 waterbed table Torch Sensor Control (TSC) – double-basing system to prevent torch damage Rotary Basing Edge (RBE) – innovative sheet metal basing without the need to place the material perpendicular/parallel to the table Dynamic Referencing (DR) – a useful procedure for the dynamic indication of the 0.0 point when machining non-standard formats Quick Start (QS) – a system ensuring a quick start of the machine in less than 1 minute Stop&Go system with simulation of cutting process function lubrication system for the X,Y axis guides ergonomic control panel ball conveyors to facilitate loading of workpieces openings to facilitate transport of the machine using forklift trucks
